Bay / Bow Windows

Often used as a focal point of a room, bows and bays can accent your space with elegance and style. Bow/Bays add depth to a room and can create increased ventilation because they extend beyond your exterior wall. Consider and choose from one of the many configurations below.


Bay and Bow Window Styles


Casement

Casement bay and bow units offer contemporary styling, create a roomy feeling, increase ventilation and can be built in many combinations.

Bay units are constructed using three windows or more. Flankers are aligned with a center unit at 45° or 30° angles.

Bow windows typically feature a series of 3-6 casements mulled as a radius.

Bay/Bow windows may include factory-assembled head and seat boards and a cable kit to compensate for overhanging weight and aid in installation.



Double Hung

What could be more exciting than installing a Lincoln double hung bay window at the heart of your room? This attractive window combination is sure to add both functionality and flare.

Bay units are constructed using three windows or more. Flankers are aligned with a center unit at 45° or 30° angles. Center units can consist of an operating double hung, mulled operators or studio windows.

Double hung bay windows may include factory-assembled head and seat boards and a cable kit to compensate for overhanging weight and aid in installation.



Casement Window Corner



Features

  1. 4-9/16” jamb
  2. 1-3/16” thick side jambs, head and sill
  3. 7/8” warm edge insulating glass
  4. Interior wood glazing bead
  5. Maximum thickness sill cover
  6. Full surround weatherstrip on the frame
  7. .050 extruded aluminum on sash and frame. Vinyl exteriors utilize .050 extruded PVC vinyl. Wood units have primed sash on the exterior with cPVC sill, sill nosing and brickmould
  8. Injected frame corners on aluminum clad products with corner key for added stability. Fusion welded corners on vinyl clad frames
  9. 1-3/4” thick sash
  10. Flexible leaf weatherstrip on sash stiles and combination drip cap leaf on top rail

Double Hung Window Corner



Features

  1. 4-9/16” jamb
  2. Interior wood glazing bead
  3. 11/16” warm edge insulating glass
  4. 1-7⁄16” thick sash
  5. Weatherstripped at head, sill and checkrail
  6. Cellular PVC sub sill
  7. .050 extruded aluminum on sash and frame. Vinyl exteriors utilize .050 extruded PVC vinyl. Wood units have primed sash on the exterior with cPVC sill, sill nosing and brickmould
  8. Full length weatherstrip on jambliners
  9. (Optional – not shown) color matched aluminum jambliner covers
  10. Tilt Latch Jambliners

Exterior Colors

Actual colors may vary from image on computer screen. Please see your Lincoln dealer for the latest available colors.





Exterior Options



Interior Options

Wood Species

Nothing enhances the look and feel of a room more than the richness and beauty of wood. Our standard pine interior is fine for most applications, but if you are looking to really enhance the character of your project, we offer five additional wood species.

alder
Alder
cherry
Cherry
fir
Fir
mahogany
Mahogany
oak
Oak
pine
Pine

Wood Finishes

Natural Wood

Lincoln will leave your interior wood surface sanded smooth, ready for stain and sealer.

oak

Primed

If you plan to paint the interior of your windows and patio doors, you can have them primed with a white factory applied water-based acrylic latex primer.

primed

Pre-Finished

To take things a step further, we also offer a factory applied top-coat of paint. Pre-Finished white or black is intended to be your final coat of paint and reduce jobsite finishing costs.

final finish
black finish

Square Glazing Bead

With or without the new square Simulated Divided Lite (SDL) option, utilizing the new square glazing bead style is becoming increasingly popular in the architectural communities. Lincoln's sharper glazing bead profile was designed to flow naturally with the super straight lines featured in modern designs.

square bead

Jamb Extensions

When installing a window, increasing the depth of the window frame to accommodate the wall thickness is sometimes necessary. This can easily be accomplished with the use of jamb extensions available in all six wood species.

jamb extension

Mull Casings

This is an interior trim covering that hides the joinery between mulled window assemblies and is commonly used when purchasing an applied extension jamb. Mull casings are available to match our wood species.

mull casing

Trim - Radius Units Only

Lincoln offers interior trims in ten profiles. The benefit to our customers is the ability to shape the trim for a radius unit at the time of production. In addition, plinth blocks are available, to facilitate joining radius to straight trim.

GR-499
GR-499
F-131
F-131
Ranch
Ranch
Princeton
Princeton
Colonial
Colonial

GR-499
RB3-Howell
F-131
WP-444
Ranch
WP-445
Princeton
WP-442
Colonial
WM-356

Glass Options

Lincoln offers glazing options with thoughts of energy efficiency and creature comforts alike. Whether your home is in the Sunbelt consisting of long sunny summer days, hot muggy nights and high air conditioning bills or is in the heart of the Midwest with extended periods of below-zero temperatures and high heating bills, sit in your favorite chair, relax and let our manufacturing excellence guide you through our diverse IG offering.

Lite & Grille Options

There are not only choices in the glass itself, there’s also variation in glazing. Here is another opportunity to have your windows and doors made to fit the interior design, décor and style of the room. Additionally, the exterior interacts with the overall architecture and creates fantastic curb appeal. Enhancing windows and doors with lite divisions definitely puts the icing on the cake. Although there are standard lite configurations designated for all products, custom designs are also welcome.

Hardware Options

Casement

Lincoln offers a low profile folding handle on casement windows. Folding handles are advantageous for use with some window treatments and provide lower clearance for removal of the window screen. As standard, casement operating hardware (crank handle, operator cover and lever lock) are a soft coppertone color that blends well with most clear wood finishes. Seven optional finishes are also offered. All casements feature adjustable hinge tracks for proper sash alignment.

Casement Hardware
white
White
Coppertone
Coppertone
polished brass
Polished Brass
oil rubbed brass
Oil-Rubbed Brass

satin nickel
Satin Nickel
bronze
Bronze
faux bronze
Faux Bronze
black
Black

Contempo Handle

Make a contemporary statement with your next building project and upgrade to Lincoln’s new Contempo casement hardware. This modern design features clean straight lines and pairs nicely with our Contempo sliding door and the Dallas swing door trim sets. (*=Special Order Request)

awning hardware
awning hardware
White
satin nickel
Satin Nickel
faux bronze
Faux Bronze
black
Black

awning hardware
* Bright Brass
bronze
* Bronze
awning hardware
* Oil-Rubbed Bronze

Push-Out Casement

Single handle for easy operation available in three finishes. Multi-point locking system directly routed into the stile for greater performance, security and durability.

3-point stainless steel high-friction washability hinges on top and bottom keep the window in place and allow access to clean the glass from the inside.

Casement Hardware
polished brass
Polished brass
nickel
Satin Nickel
bronze
Faux Bronze
black
Black

Casement Hardware

Sash Limiters

Lincoln's optional sash limiters meet the requirements of ASTM F2090-10.

ASTM F2090-10: Standard Specification for Window Fall Prevention Devices With Emergency Escape (Egress) Release Mechanisms establishes requirements for devices intended to address the risk of injury and death associated with accidental falls from windows by children five years old and younger.

ASTM-compliant window opening control devices:

  • Allow a window to be opened less than 4 inches with 60-lbf direct force applied
  • Allow a window to be fully opened if needed as a means of escape or rescue in an emergency with no more than 15-lbf of force
  • Require two actions to open the window fully for egress purposes
  • Require the action to be performed without the use of keys, tools or special knowledge
  • Reset automatically every time the window is opened

Not available on push-out casements

Sash Limiter

Additional Options

Because we ship to the continental US and therefore experience a lot of different regional concerns, Lincoln offers special options that make using our products a lot easier. Please contact your local dealer for details.

  • Corrosion Resistant Hardware - Often used to resist harsh coastal environments.
  • Butt Hinges - Exterior hinge allowing for fuller opening of casement windows.
  • DP65 Upgrade - By adding installation clips our casements perform exceptionally well.
  • Sash Limiters - Used to control how far a window will open.

Double Hung

Locks and Tilt Latches

Double Hung locks and tilt latches are color matched in eight hardware finishes. Two low-profile pick resistant locks are used on units with 32” glass and wider. Units smaller than 32” have one lock. Tilt latches are set into the check rail of the bottom sash and concealed in the top rail on the upper sash. Spring loaded, they release to tilt in with ease. Made to last and stay out of sight, these lock options are sure to please.

Double Hung Hardware
White
White
Coppertone
Coppertone
Polished brass
Polished Brass
Oil rubbed brass
Oil-Rubbed Brass

satin nickel
Satin Nickel
bronze
Bronze
faux bronze
Faux Bronze
black
Black
Double Hung Hardware

Sash Lift Handles

Our stylish lift handles are available in three popular that match sash locking hardware. They are also very easy-to-grab and easy to install after the interior finishing process is complete. These handles reduce damage from opening your windows by providing a solid area to grasp.

Not available for Lifestyle Double Hung.

Double Hung Sash Lift Handles
White
White
Coppertone
Coppertone
Bronze
Bronze

Sash Limiters

Lincoln's optional sash limiters (two per unit) meet the requirements of ASTM F2090-10 and are available in two finishes including White and Chrome.

ASTM F2090-10: Standard Specification for Window Fall Prevention Devices With Emergency Escape (Egress) Release Mechanisms establishes requirements for devices intended to address the risk of injury and death associated with accidental falls from windows by children five years old and younger.

ASTM-compliant window opening control devices:

  • Allow a window to be opened less than 4 inches with 60-lbf direct force applied.
  • Allow a window to be fully opened if needed as a means of escape or rescue in an emergency with no more than 15lbf of force.
  • Require two actions to open the window fully for egress purposes.
  • Require the action to be performed without the use of keys, tools or special knowledge.
  • Reset automatically every time the window is opened.
DH Sash Limiters

White
White
Chrome
Chrome

Quantum Double Hung Locks

Quantum sash locks are available in four finishes. It is a heavy-duty lock with alignment nubs that inset into the keeper. Typical Quantum Double Hung units have two locks.

Quantum Double Hung Locks
White
White
Coppertone
Coppertone
Polished brass
Polished Brass
Bronze
Bronze

Screen Options

Screens allow you to enjoy the fresh air while keeping insects and debris out of your home. Lincoln offers three options.


Fiberglass Screen

BetterVue Screen

BetterVue is our standard screen mesh. Made of fiberglass, it has thinner strands and a tighter weave than traditional fiberglass screen providing better visibility, increased light transmittance, greater airflow, improved curb appeal and enhanced protection from small insects (no-see-ums), debris and dust.

UltraVue® offers the most clarity of our screen mesh options. Constructed of fire-retardant charcoal fiberglass mesh, UltraVue® screens are engineered with even thinner strands and a tighter weave than our BetterVue® screen option for increased visibility, light transmittance, airflow and insect protection.

Aluminum is the most widely used metal for screens and is a great option for homes with pets or kids. Metal screens are popular in regions where insects routinely chew holes in fiberglass mesh.

Close-ups

BetterVue
BetterVue®
UltraVue
UltraVue®
Aluminum
Aluminum

Traditional

The Lincoln traditional screen has a lift rail at the bottom and compression springs at the head which allow for easy removal. Our color-matched PVC corner keys help keep interiors from scuffing during removal and installation.

Metal Frames - Standard Finishes

white
White
coppertone
Coppertone
bronze
Bronze
matte black
Black

Metal Frames - Special Order Finishes
(may require additional lead time)

clear anodized
Clear Anodized
dark bronze
Dark Bronze

Veneer Wrapped Frames

Alder
Alder
Fir
Fir
Oak
Oak
Pine
Pine

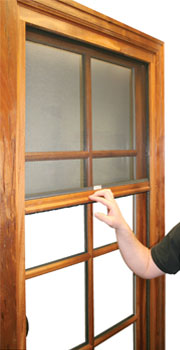

Retractable

Available on our traditional casement and our very popular push-out style casement, retractable screens roll up for convenient storage when not desired. Screens are operated with a simple touch and roll up with very little effort.

Enjoy crisp clean interior lines because operating tracks are hidden with a wood cover.

retractable screen


Hinged

Designed for our push-out style casement products, Lincoln’s hinged screen offers classic styling and excellent functionality. This screen option is supplied with an attractive color-matched knob for easy operation.

hinged screen

Traditional Double-Hung/Glider

Held in with posts at the head jamb and with plungers on the sides, these screens allow for easy removal. Full screens also have support bar in the middle for extra strength. Our color-matched PVC corner keys help keep interiors from scuffing during removal and installation.

Additional Options

Because we ship to the continental US and therefore experience a lot of different regional concerns, Lincoln offers special options that make using our products a lot easier. Please contact your local dealer for details.

Half-screens - Match existing windows with 1/2 screens, more visible light: available in all Lincoln double hung and glider product lines.


Configuration Options

One of the best ways to change or improve the look of a home is to alter the window configuration. Our vast offering of window styles allows for configurations from traditional to contemporary and everything in between. The samples shown below are just a handful of what's possible. Whether you want a simple studio window combination or are looking to make a statement by combining standard windows with specialty shapes, we can meet your needs.

30 3-Wide Casement Bay
30° 3-Wide Casement Bay
30 Studio Combo Casement Bay
30° Studio Combo Casement Bay
45 4-Wide Casement Bay
45° 4-Wide Casement Bay



Double Hung Bay
30° 3-Wide Double Hung Bay
Double Hung Bay
45° Studio Combo Double Hung Bay



3-Wide Casement Bow
3-Wide Casement Bow
5-Wide Casement Bow
5-Wide Casement Bow
