Folding Patio Doors

Distinctive rooms require an exceptional door system. Lincoln Fold-A-Way doors, when completely opened, leave a stunning unobstructed view. Multiple configurations consist of stacking panels and may include an operable out-swing panel.


Folding Patio Door Styles


Standard Folding Patio Door

Transform your home or business with our largest product offering! The Lincoln Folding patio door system can be comprised of a maximum of 8 patio panels with the ability to be completely opened for a spectacular open space.

Select a floor channel for room-to-room use or our sloped sill option when weather-tight performance is desired. The sloped sill is based on an out-swing door configuration.


Contemporary Folding Patio Door

Lincoln Patio Doors give you an option to have narrow panels. The panels have a 4-13/16” bottom rail and 3-3/8” top rail and stiles. This narrow style or contemporary look gives a larger daylight opening. The modern site lines give any homeowner the ability to create their style throughout the home!

These doors are available in out-swing and folding door configurations and come in heights up to 9’0”.


Folding Patio Door Corner



Features

  1. 5-1/2" jamb with clad exterior. 6-9/16" jamb on primed exterior
  2. 1-3/4" or 2-1/4" thick panels
  3. 3/4" tempered insulating glass and 1-3/8" Triple Pane (2-1/4" panels only)
  4. Interior wood glazing bead- available in profiled or square
  5. Full surround weatherstrip
  6. .080 extruded aluminum sill (shown) or recessed floor channel guide option
  7. .050 extruded aluminum clad on panels and frame

Specifications

  • Maximum Panel Width: 3' 6"
  • Maximum Panel Height:
    9' 0" (1-3/4" Panel Thickness)
  • Maximum Panel Height:
    10' 0" (2-1/4" Panel Thickness)
  • Approximate Maximum Width: 48'
  • Maximum Number of Panels is 8 each direction
  • Maximum Height: 9' 4 3/4" (1-3/4" Panel Thickness)
  • Maximum Height: 10' 4 3/4" (2-1/4” Panel Thickness)

Exterior Colors

Actual colors may vary from image on computer screen. Please see your Lincoln dealer for the latest available colors.





Exterior Options



Interior Options

Wood Species

Nothing enhances the look and feel of a room more than the richness and beauty of wood. Our standard pine interior is fine for most applications, but if you are looking to really enhance the character of your project, we offer five additional wood species.

alder
Alder
cherry
Cherry
fir
Fir
mahogany
Mahogany
red oak
Red Oak
white oak
White Oak
pine
Pine

Wood Finishes

Natural Wood

Lincoln will leave your interior wood surface sanded smooth, ready for stain and sealer.

oak

Primed

If you plan to paint the interior of your windows and patio doors, you can have them primed with a white factory applied water-based acrylic latex primer.

primed

Pre-Finished

To take things a step further, we also offer a factory applied top-coat of paint. Pre-Finished white or black is intended to be your final coat of paint and reduce jobsite finishing costs.

final finish
black finish

Square Glazing Bead

With or without the new square Simulated Divided Lite (SDL) option, utilizing the new square glazing bead style is becoming increasingly popular in the architectural communities. Lincoln's sharper glazing bead profile was designed to flow naturally with the super straight lines featured in modern designs.

square bead

Jamb Extensions

When installing a window, increasing the depth of the window frame to accommodate the wall thickness is sometimes necessary. This can easily be accomplished with the use of jamb extensions available in all six wood species.

jamb extension

Mull Casings

This is an interior trim covering that hides the joinery between mulled window assemblies and is commonly used when purchasing an applied extension jamb. Mull casings are available to match our wood species.

mull casing

Glass Options

Lincoln offers glazing options with thoughts of energy efficiency and creature comforts alike. Whether your home is in the Sunbelt consisting of long sunny summer days, hot muggy nights and high air conditioning bills or is in the heart of the Midwest with extended periods of below-zero temperatures and high heating bills, sit in your favorite chair, relax and let our manufacturing excellence guide you through our diverse IG offering.

Lite & Grille Options

There are not only choices in the glass itself, there’s also variation in glazing. Here is another opportunity to have your windows and doors made to fit the interior design, décor and style of the room. Additionally, the exterior interacts with the overall architecture and creates fantastic curb appeal. Enhancing windows and doors with lite divisions definitely puts the icing on the cake. Although there are standard lite configurations designated for all products, custom designs are also welcome.

Hardware Options

Swing Patio

Handles and Backplates

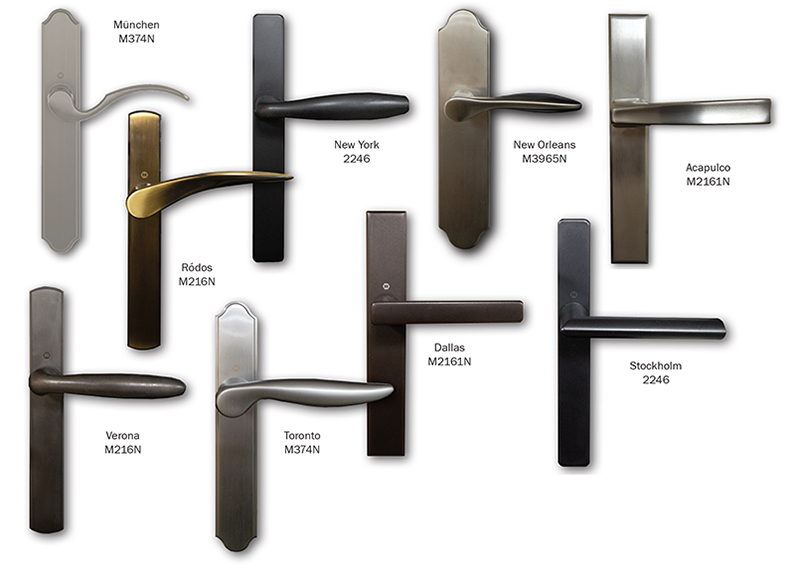

Lincoln offers 9 swing door handles with various backplate and finish options. 6 of the handles are manufactured with quality brass alloys (München, Ródos, Verona, Toronto, New Orleans, Dallas and Acapulco) and 2 handles are made with an aluminum substrate (Stockholm & New York). All handles and backplates, except oil-rubbed, are protected by a transparent enamel finish which offers strength and durability as well as a smooth, blemish free surface. Oil-Rubbed has a “live” finish that changes over time. Celebrate your distinctive design style by creating a handle package from our many finish options, lever choices and backplate styles.

swing door handle
White
White
Polished Brass
Polished Brass
Antique Brass
Antique Brass
Oil-Rubbed Brass
Oil-Rubbed Brass
Satin Nickel
Satin Nickel
Polished Chrome
Polished Chrome
>Brushed Chrome
Brushed Chrome
Faux Bronze
Faux Bronze
Matte Black
Matte Black
Dark Bronze Metallic
Dark Bronze Metallic
Alpine Frost
Alpine Frost

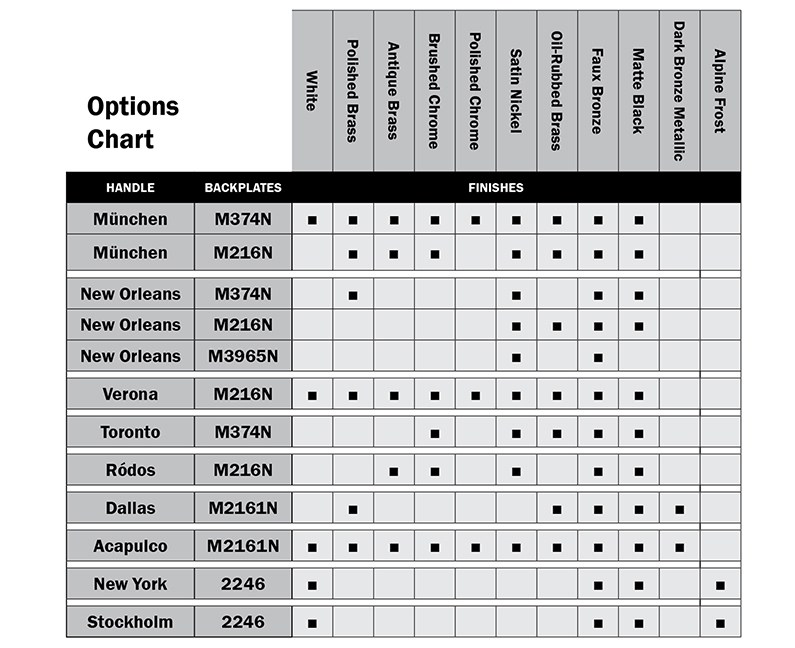

Not all handles can be combined with all backplates and in all finishes. See the Options Chart for available combinations.





Swing Door handle

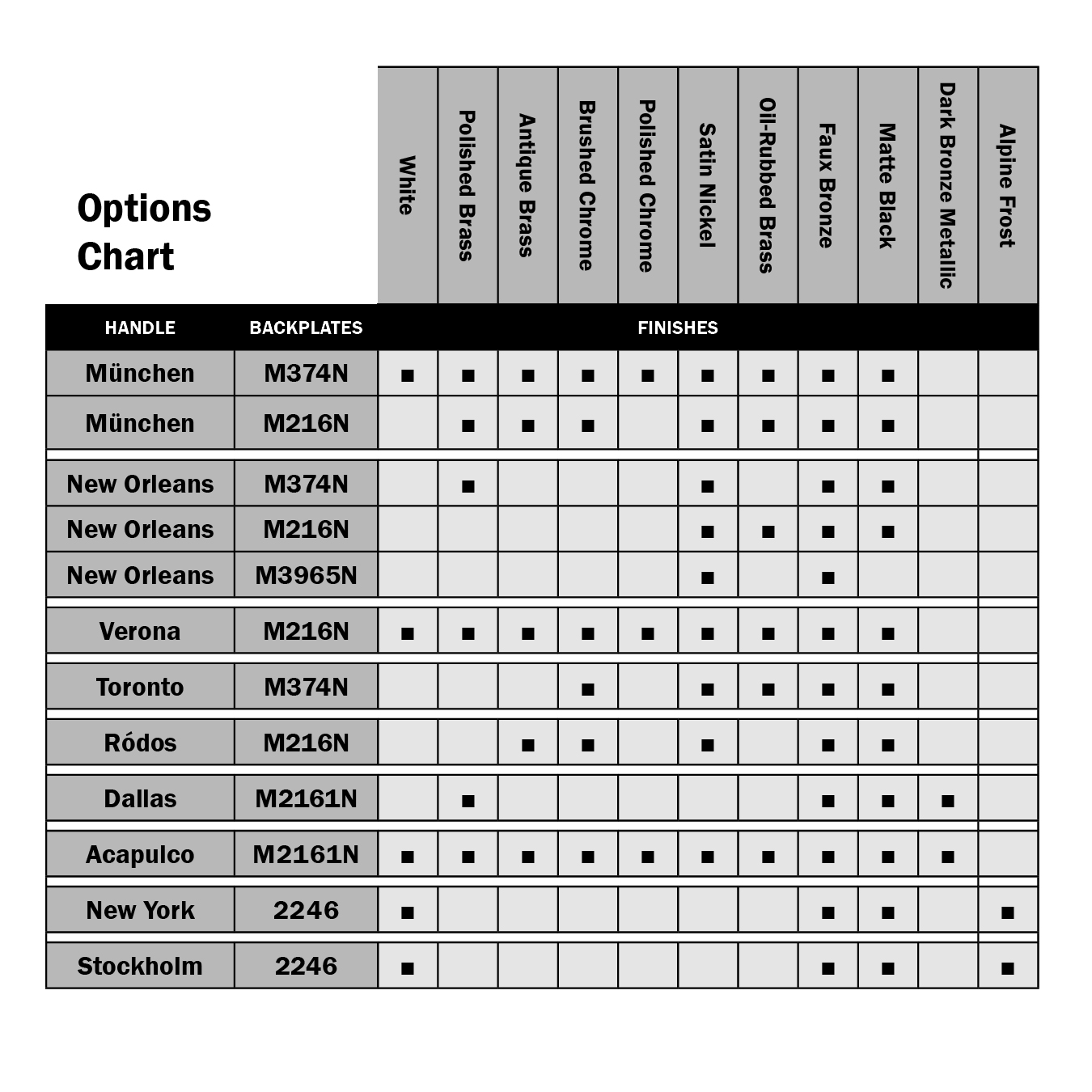

Hardware Chart

Twinpoint Hardware

The main operating panel on a folding door uses the swing door handle options shown above, while the remaining are operated using heavy-duty twinpoint levers and hinges.

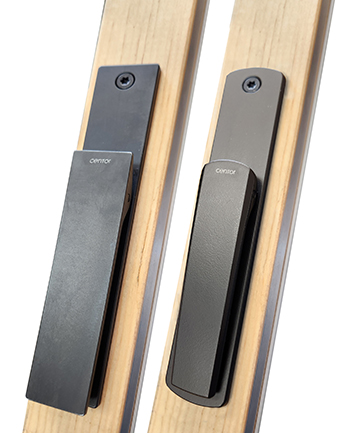

The twinpoint levers, available in 2 handle styles, activates concealed rods into the head and sill for secure locking action. The Straight Top Handle (H01) is made of stainless steel and available in 2 finishes - PVD Black and Stainless Steel. The Round Top Handle (H02) is a zinc diecast and available in Matte Black Powdercoat, Matte White Powdercoat and Nickle Plated finishes.

Twin Point Hardware

Folding Door

Hardware Components

slide door allure handle
Track, Guide Channel and Sill

The Folding Patio Door is a top mounted track system allowing the weight of door to be carried on the header. The bottom guide glides with minimal effort in a polypropylene floor channel lining allowing a smooth, almost silent rolling action. A low threshold guide channel is available for internal applications - no obtrusive door sill, just a recessed track in the floor.

Carriers, Guides and Pivots

Carriers, guides and pivots use the highest grade stainless steel rollers and bearings. Floor guides and floor pivots are offset so the floor guide channel is located directly under the door panels when they are closed. This system is beneficial from an aesthetic perspective and reduces the opportunity for dust and debris to enter the channel.

Folding Door Hinges

Our doors include heavy-duty pull handles and hinges. Door panels come standard with three hinges, a fourth is added for doors over 7’4”. Flush-mounted dropbolts firmly anchor the door panels when closed.

Screen Options

Retractable Screen

A fully integrated retractable insect screen is available for openings up to 24 feet wide and 9 feet high. The load balanced system opens and closes effortlessly and remains firmly in any chosen position until further pressure is applied.

The screen is manufactured entirely in stainless steel, brass and reinforced engineering polymers. The tough PVC-coated polyester mesh used in the screen is hard wearing, resistant to damage, easy to clean and can be replaced if necessary.

hinged screen



Screens

All screens are made-to-order and specially configured for each bi-fold door system. They are available for openings up to 24’ wide x 10’ high and feature load balancing technology for effortless operation while remaining firmly in any chosen position until further pressure is applied. Screens store easily into its own frame when a clear opening is desired.

The tough PVC-coated polyester mesh used in the screen is hard wearing, resistant to damage, easy to clean and can be replaced if necessary. Choose a single function or double functioning system where six mesh options are available.



hinged screen

Configuration Options

One of the best ways to change or improve the look of a home is to alter the window configuration. Our vast offering of window styles allows for configurations from traditional to contemporary and everything in between. The samples shown below are just a handful of what's possible. Whether you want a simple studio window combination or are looking to make a statement by combining standard windows with specialty shapes, we can meet your needs.

2-Wide
2-Wide
3-Wide
3-Wide
3-Wide
3-Wide



Configs
